SKU · DX-CRAWLER-SCISSOR-LIFT-5-OUTRIGGERS
DINGXIN 400 kg Tracked Scissor Lift, 5 m Crawler Platform with Hydraulic Outriggers, 2200 W AC Motor, 48 V Lithium Battery, for Construction and Orchard
400 kg · 5 m working height · 2200 W AC
From
$6,040.00
Excl. VAT| SKU | Model | Price | Quantity |
|---|---|---|---|
| DX-CRAWLER-SCISSOR-LIFT-5-OUTRIGGERS | 5-m | $6,040.00 |
Specifications
MOQ1 unit
Lead time15–20 working days
Port of loadingQingdao, China

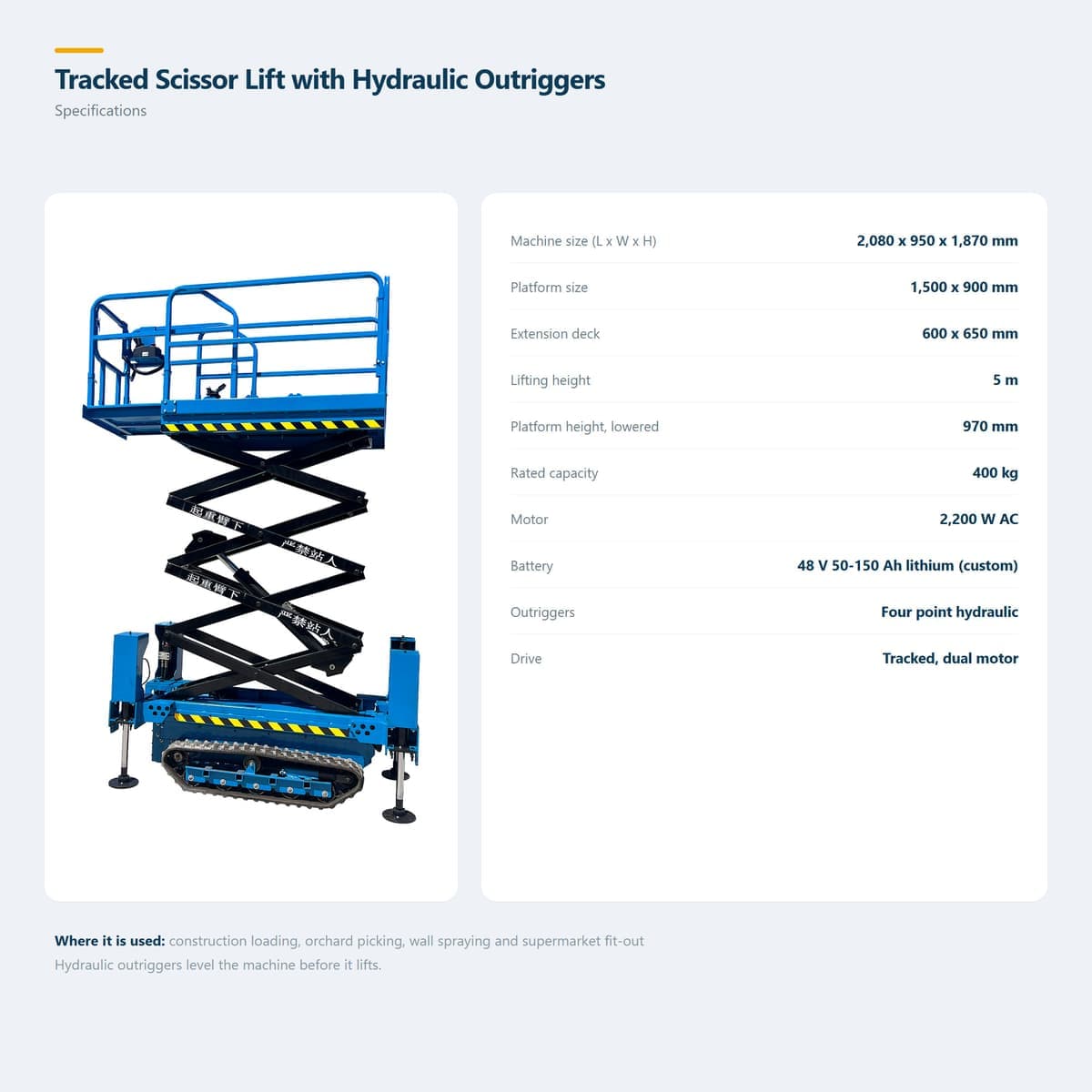

Working height5 m (16.4 ft)
Load capacity400 kg (882 lb)
Platform size1500 × 900 mm plus a 600 × 650 mm extension
Folded height970 mm
Machine weightApprox. 1,150 kg
DriveReinforced rubber tracks, dual-motor drive
Dimensions (H × W × L)1870 × 950 × 2080 mm
Catalog prices are indicative factory prices for a single unit; batch pricing is quoted per order.
Delivery & termsRead shipping & terms
Shipping
- MOQ
- 1 unit
- Lead time
- 15–20 working days
- Port of loading
- Qingdao, China
Packing & container load
- Packed size (L × W × H)
- 2200 × 1070 × 1970 mm
- Gross weight
- Approx. 1,310 kg
- Container load
- 5 pcs / 20'GP · 11 pcs / 40'HQ
Terms
- Trade terms
- EXW / FOB / CIF / DDP
- Payment
- 30% T/T deposit, 70% before shipment; L/C at sight negotiable
- Warranty
- 12 months or 1,500 working hours, whichever comes first
- Certificates
- Available on request
Packing and container figures are indicative; the packing list prevails.
Detail viewsClick any image to open full resolution
