SKU · DX-CRAWLER-ARTICULATED-BOOM-LIFT

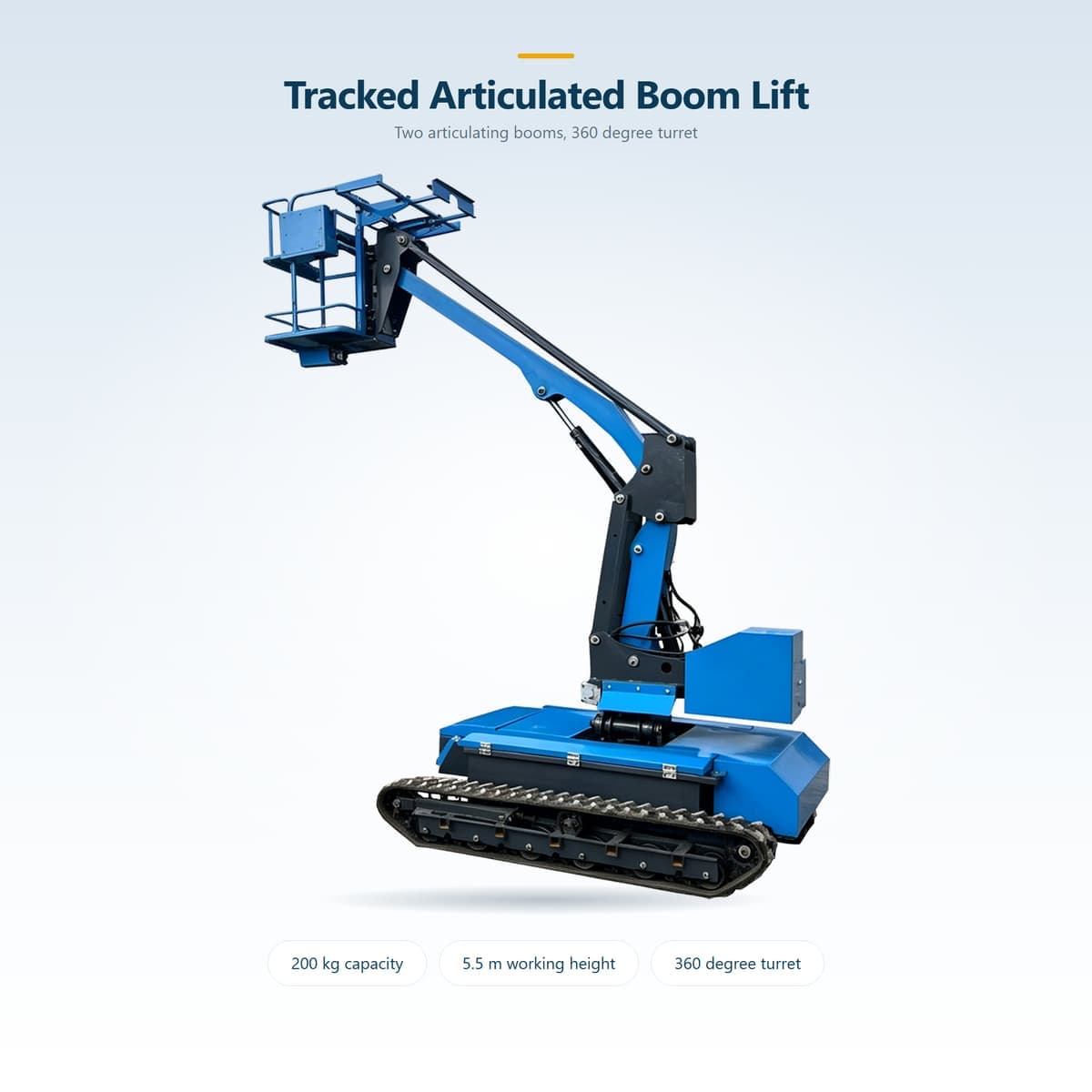

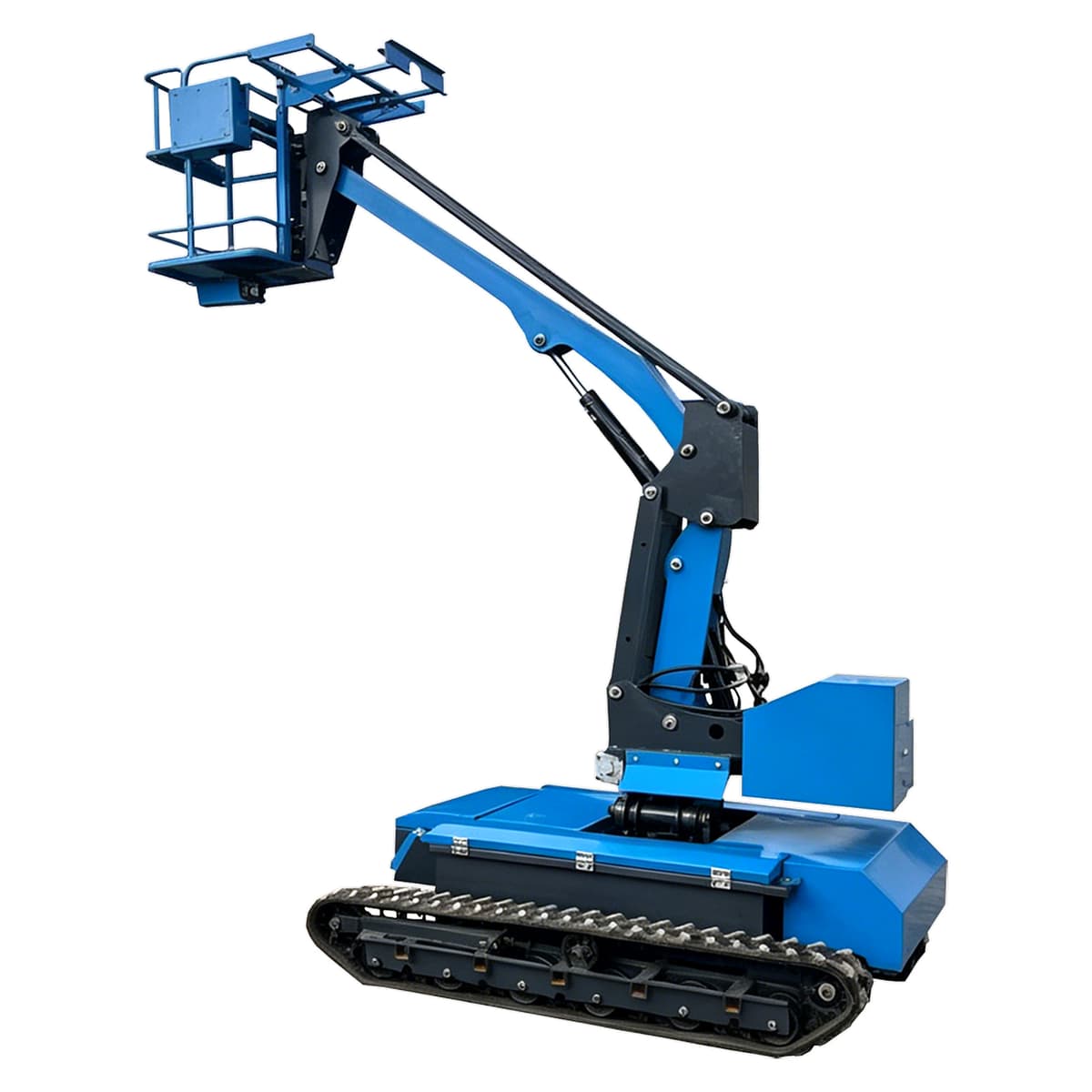

DINGXIN 200 kg Tracked Articulated Boom Lift, 5.5 m Crawler Boom Lift Platform, 2000 W AC Motor, 48 V 203 Ah (8 batteries) Battery, Self-Propelled for Orchard and Line Repair
200 kg · 5.5 m working height · 2000 W AC
From
$6,980.00
Excl. VAT| SKU | Model | Price | Quantity |
|---|---|---|---|
| DX-CRAWLER-ARTICULATED-BOOM-LIFT | 5.5-m | $6,980.00 |

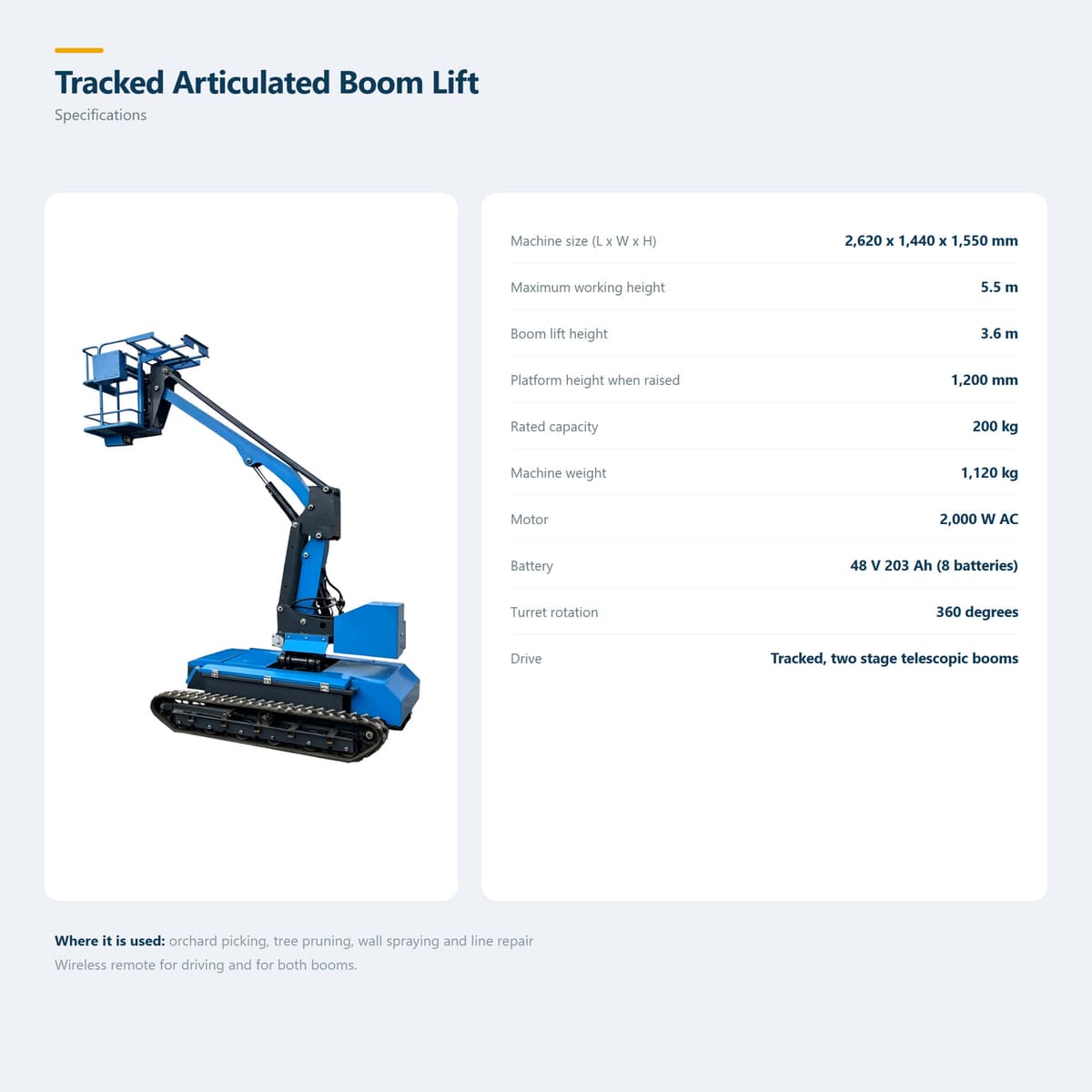

Specifications
MOQ1 unit
Lead time25–35 working days
Port of loadingQingdao, China
Working height5.5 m (18 ft)
Load capacity200 kg (441 lb)
Platform size1200 × 800 mm
Folded height1550 mm
Machine weightApprox. 1,120 kg
DriveReinforced rubber tracks, two-section telescopic boom
Dimensions (H × W × L)1550 × 1440 × 2620 mm
Catalog prices are indicative factory prices for a single unit; batch pricing is quoted per order.
Delivery & termsRead shipping & terms
Shipping
- MOQ
- 1 unit
- Lead time
- 25–35 working days
- Port of loading
- Qingdao, China
Packing & container load
- Packed size (L × W × H)
- 2740 × 1560 × 1650 mm
- Gross weight
- Approx. 1,270 kg
- Container load
- 2 pcs / 20'GP · 4 pcs / 40'HQ
Terms
- Trade terms
- EXW / FOB / CIF / DDP
- Payment
- 30% T/T deposit, 70% before shipment; L/C at sight negotiable
- Warranty
- 12 months or 1,500 working hours, whichever comes first
- Certificates
- Available on request
Packing and container figures are indicative; the packing list prevails.
Detail viewsClick any image to open full resolution
